Dry Type Electrical Transformers

Rs 2 Lakh / Unit

Minimum Order Quantity: 1 Unit

Being a customer focused organization, we are engaged in offering a wide gamut of Dry Type Electrical Transformers.These transformers are manufactured using quality approved raw material which we procure from reliable vendors of the market. All the products offered by us are widely


  Get Best Quote

Product Specification

Minimum Order Quantity 1 Unit

---

Product Description

Rs 2 Lakhs / Piece

Being a customer focused organization, we are engaged in offering a wide gamut of Dry Type Electrical Transformers.These transformers are manufactured using quality approved raw material which we procure from reliable vendors of the market. All the products offered by us are widely acknowledged by our valuable clients for their excellent features such as robustness and sturdy designing. Further, clients can avail these products from us in various sizes, dimensions and other specifications

Range:

• Upto 5 MVA 33 kV class

Product Range:

• 50 kVA to 5000 kVA, 11 kV & 33 kV class suitable for indoor applications with off circuit tap links, off circuit tap switch, on load tap changer (indigenous & imported)

Standards:

• The dry type transformer are manufactured to comply with National International Standards BIS, IS 11171, IEC 76

Quality:

• These products are certified in accordance with ISO 9001-2008, 14001 -2004, 18001-2007 Certification from BSI

Description:

• MPIL manufacture ventilated dry type transformer
• Maintenance free
• Safe from fire as material used are metals, ceramics, fiberglass and resin
• Environment friendly as there is no oil
• Handing becomes easier
• No chances of spillages and leakages
• Minimal non toxic smoke in case of fire
• MPIL offers ventilated dry type transformers with class H/E insulation which can bear heat upto 180/220ºC
• Can be used in humid and chemically polluted atmosphere

Winding:

• LV & HV winding are done in dust free air conditioned winding shops
• Rectangular copper strips are used for LV winding insulated with Nomex
• HV winding are of copper wire insulated with Nomex or suitable material for temperature rise

Testing:

• MPIL has in-house facilities for conducting all routine tests as per IEC & IS

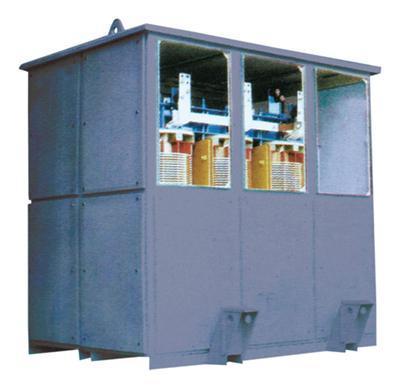

Product Image
