Oil Cooled Power Transformer

Minimum Order Quantity: 1 Unit

We are highly recognized for our high quality range of Oil Cooled Power Transformer. Our range of Oil Cooled Power Transformer is prepared using quality material and latest manufacturing technologies. We can prepare bulk orders of this product in a short span of time. These stations are high in demand as these are flawless and prepared using high-quality machines and other required raw material, sourced from the prestigious vendors of the industry.

Phase Single Phase

---

  Get Best Quote

Product Specification

Phase Single Phase

---

Product Description

We have established our name in manufacturing Oil Cooled Power Transformers.

Application Standards:

IS, IEC, ANSI, JIS, BS, DIN, ETC.

Transformer Options:

• Cooling Tubes / Radiators / Corrugated
• Tanks
• Pole Mounted / Ground Mounted
• Free Breathing / Hermetically Sealed
• CSP / Non CSP
• Winding-Copper/Aluminium (Foil /
• Rectangular Wire / Round Wire)
• Fittings and Accessories, Cable
• Terminations etc.as required

Standards:

MUSKAAN’S transformers are designed and tested as per IS : 2026, BS - 171, IEC - 76 & IEC - 726.

Vector Group:

Transformers will be connected as per vector group reference Dyn11. Other vector groups can be offered as per specific requirements.

Terminal Arrangement:

H. V. - Bare Bushings or Cable Box, L. V. - bare bushings or cable box. Disconnecting chambers can also be provided on both HV and LV Cable boxes.

Temperature Rise:

MUSKAAN’S transformers are designed for a maximum temperature rise of 40 / 50 degree C of oil / winding. Lower temperature rise can be offered on request.

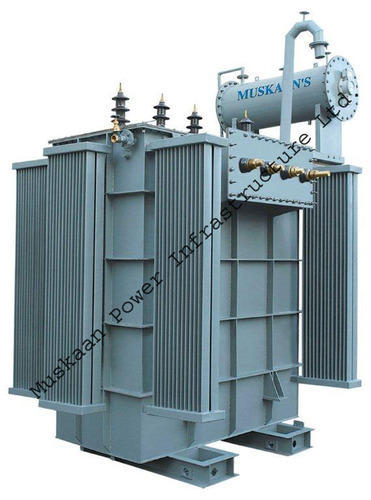

Product Image
